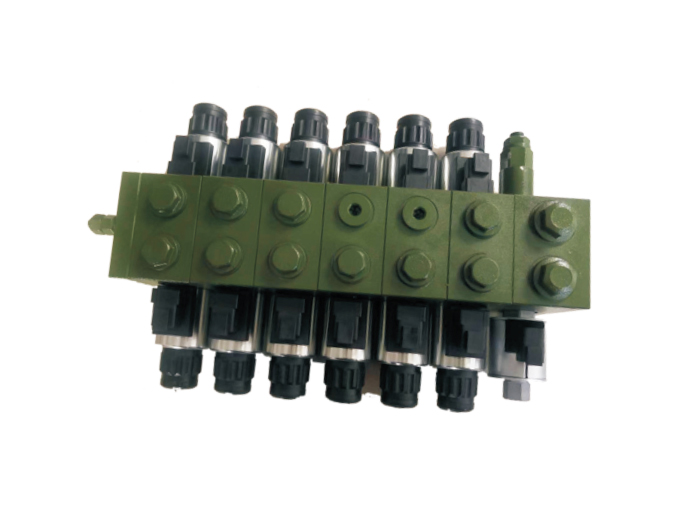

Quae sunt materia requisita ad valvulas electromagneticas multi-modo?

Electio materialis pro valvula electromagnetica multi-modo directe afficit suam pressionem resistentiam, resistentiam gerunt, resistentiam corrosionis, et vitam serviendi. Magnam considerationem requirit factorum ut pressurarum operantium, notarum instrumentorum et condiciones environmental.

Sunt hae praecipuae delectu requisita materialia et solutiones applicabiles typicae:

I. Caput Component Material Requirements

1. Corpus Valvae Material

Material Type | Characteres | Locum missiones

Ductile Iron (QT500-7) | Maximum robur (extensibile robur ≥500MPa), bonum vibrationis debilitans, humilis sumptus | Medium et humilis systemata pressio (≤35MPa), machinalis machinalis

Forged Steel (42CrMo) | Vires ultra altae ( robur distrahentes ≥1000MPa ) , lassitudine resistentes , aestus affecti et temperati | Alta pressio systemata (42MPa ) armorum metallurgicorum

Aluminium Alloy (6061-T6) | Corrosio resistens, sed pressio inferior resistentia (≤21MPa) | Aviation, mobile apparatu

Stainless Steel (316L) | Repugnans acido et alcali / evomit corrosionem, sed sumptus magnos | Industria chemica, remote platforms

Curatio specialis:

Murus interior finiens: Ra≤0.4μm, resistentia minuens.

Auxilio efficiens: Valvae cavitas corporis tunica WC-Co obductis (durationis HV1200), particulis exesis resistens.

2. plectrum Core et Sleeve

Material Combination | Commoda | Technical Parameters

20CrMnTi Carburized and Extingui Hard Chrome Plating | Surface Hardness HRC60-62, Wear Repugnantia | Plating Crassitudo ≥0.03mm, Lifespan ≥1 decies centena millia circuitus

Stainless Steel (440C) PTFE Coating | Corrosio Repugnans et Humilis Coefficiens friction (μ≤0.05) | Glycol media aqua apta

Ceramic (Al₂O₃/ZrO₂) | Ultra-wear Repugnans, Anti-adhesio, sed fragilis | Usus est summus pressura (≥60MPa) conditionibus extrema working

Subtilitas Opportunus:

Valvae Core et Valvae Orificium Gap Control:

Valvae ordinariae: 0.01~0.03mm

Summus Precision Valvae: ≤0.005mm (conventus temperatus requirit)

3. Sigilla

Material | Temperature Range | Media Resistentia | Lifespan

Nitrile Rubber (NBR) | -30℃~100℃ oleum minerale, emulsio aquae-olei: 500,000 cyclos

Fluororubber (FKM): -20℃~200℃, acida et alcali, olea synthetica ester: 1 decies centena cyclos.

Polyurethane (PU): -40℃~80℃, renitens labore magno, sed hydrolysi non resistens: 300,000 circuitus

PTFE metallum sceletum: -100℃~260℃, omnia olea hydraulica, media valde corrosiva: 2 decies centena cyclos

II. Materia Electio Strategy Ex Opus Conditionibus

1. princeps Pressure, Gravis-Officium working Conditions (exampla, cuniculum taediosum machinis)

Valvae Corpus: 42CrMo ferrum commissum (extinctum et temperatum HB280-320)

Valvae Core: 20CrMnTi carburized et exstinguitur laser vestitus Stellite mixtura

Sigillum: FKM PTFE sigillum compositum

2. 3. Corrosive Environments (exampla, chemica Equipment)

Corpus valvae: 316L Steel.

Valvae Core: 17-4PH praecipitatio obdurata Steel

Signare: PTFE plena Encapsulation Structure

4. Low-Temperate Environments (exampla, Humus Machinery)

Corpus valvae: QT400-18L (Ferrum ductile humilis, -60℃ Impact Energy ≥12J)

Signare: Silicone Purgamentum (MVQ) vel Hydrogenatum Nitrile Butadiene Flexilis (HNBR)

5. Cibus / Pharmaceutical Equipment

Corpus valvae: 304 Steel.

Signare: FDA-Certified EPDM Purgamentum

III. Applicationem de Special Muneris Materias

Requisita antistatic:

Core valvae cum fibra carbonis addita (volumen resistivity ≤10⁶Ω·cm) ad prohibendos scintillas ex pulvere ignito.

Pondus Reductio Design:

Titanium mixturae (TC4) valvae corpus, eadem vi cum ferro sed 40% levior.

Ultra- longum spatium restat;

Core valvae carbonis (DLC) tunica adamantino utitur, cum frictione coefficiente <0.02.

IV. Communia materialia delicta et countermeasures

Defectum Mode | Causa | Solutio

Valve core scoring | Particulas duras intrusit in hiatum | Reponere cum WC-Co valvae iactaret sleeve online filter

Sigillum tumoris | Oleum et materia incompatibilitas | Restituo cum FKM vel PTFE materia

Valvae corpus crepuit | Dejectio defectus vel pressura inpulsa | Usus valvae chalybeis fictae corporis, elementi finiti accentus optimization design

V. Future Material trends

Materiae captiosae: Figura memoriae valvae mixturae nucleus, fluxus temperatus adaptivae regulatio.

Materiae nanocompositae: Graphene-valvae corporis roboratae, vires auctae per 50%.

3D impressio: Topologia-optimized structura materiae gradientis (exempli causa aeris-ferrum compositi canales refrigerationis).

Electio commendatio: Aestimatio comprehensiva requiritur, considerantes factores ut sumptus (materiae rationem pro 30%~50% totius valvae corporis sumptus), condiciones operandi et cycli sustentationem. Optiones materiales prioritize quae certificati sunt ISO 4400/DIN 24340.
